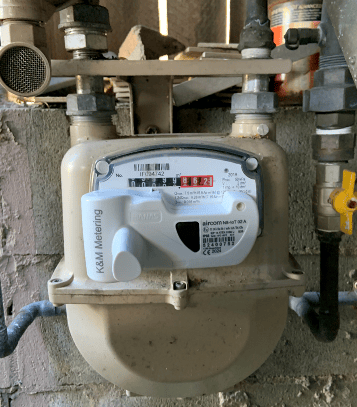

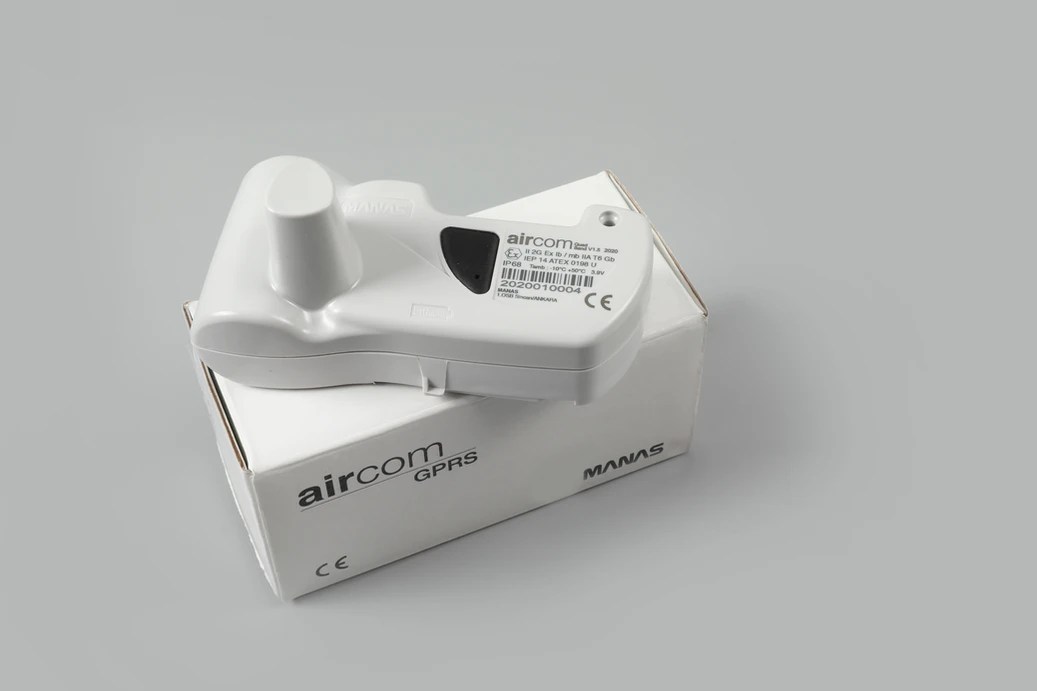

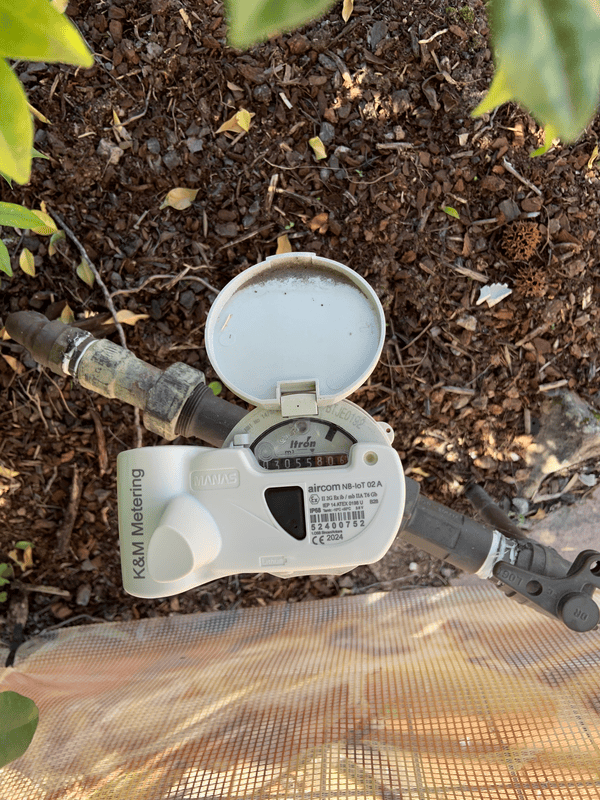

Manas presents the Aircom unit – designed for remote reading of mechanical meters.
With advanced communication capabilities, this compact data collection module retrieves subscriber consumption data, enabling utilities to gather and analyze information for future investment planning. By having high protection class (IP 68), it is not affected by any external conditions (humidity, rain, mud, sunlight, etc.) Aircom’s safety level is high as it has magnetic trick-proof. Aircom has a system that detects displaces, so it does not allow fraudulent usage. It serves the utilities with its full functions for up to 10 years, by having a high-capacity battery without the need for any external power supply.
Minimum order is 10 units
Freight not included
Ex GST
Customer to supply SimChip MFF2
$113.05
Out of stock
| Flow rate | From 0.25 m3/h to 1000 m3/h, G10 to G650 |
| Protection | IP67 |
| Normal Diameters | DN 25 to DN 150 (1” to 6”) |
| Maximum Working Pressure | Up to 100 bar depending on the body material and flanging |
| Body Materials | Aluminium, ductile iron or steel |
| Temperature Range | -30° C to +60° C |
| MID | -25° C to +55° C |
| Storage Temperature | -40° C to +70° C |
| Metrology | In accordance with MID and IML, rangeability up to 1:200 |
| Intrinsic Safety Approval | l L.C.I.E. 06 ATEX 6031 X - Compliant with the Directive 2014/34/EU |
• Communication supports GPRS, LoRa, NB-IoT communication ensuring comprehensive connectivity options
• Require minimal setup, yet still remains a plug-and-play solution, eliminating the need for additional infrastructure
• Bluetooth Low Energy (BLE) is used to read modules data and also upgrade device firmware
• The 4com web and mobile app are thoughtfully crafted to provide effortless monitoring and control capabilities
• Upgrading your mechanical meter to a Smart meter empowers us to efficiently optimize energy utilization

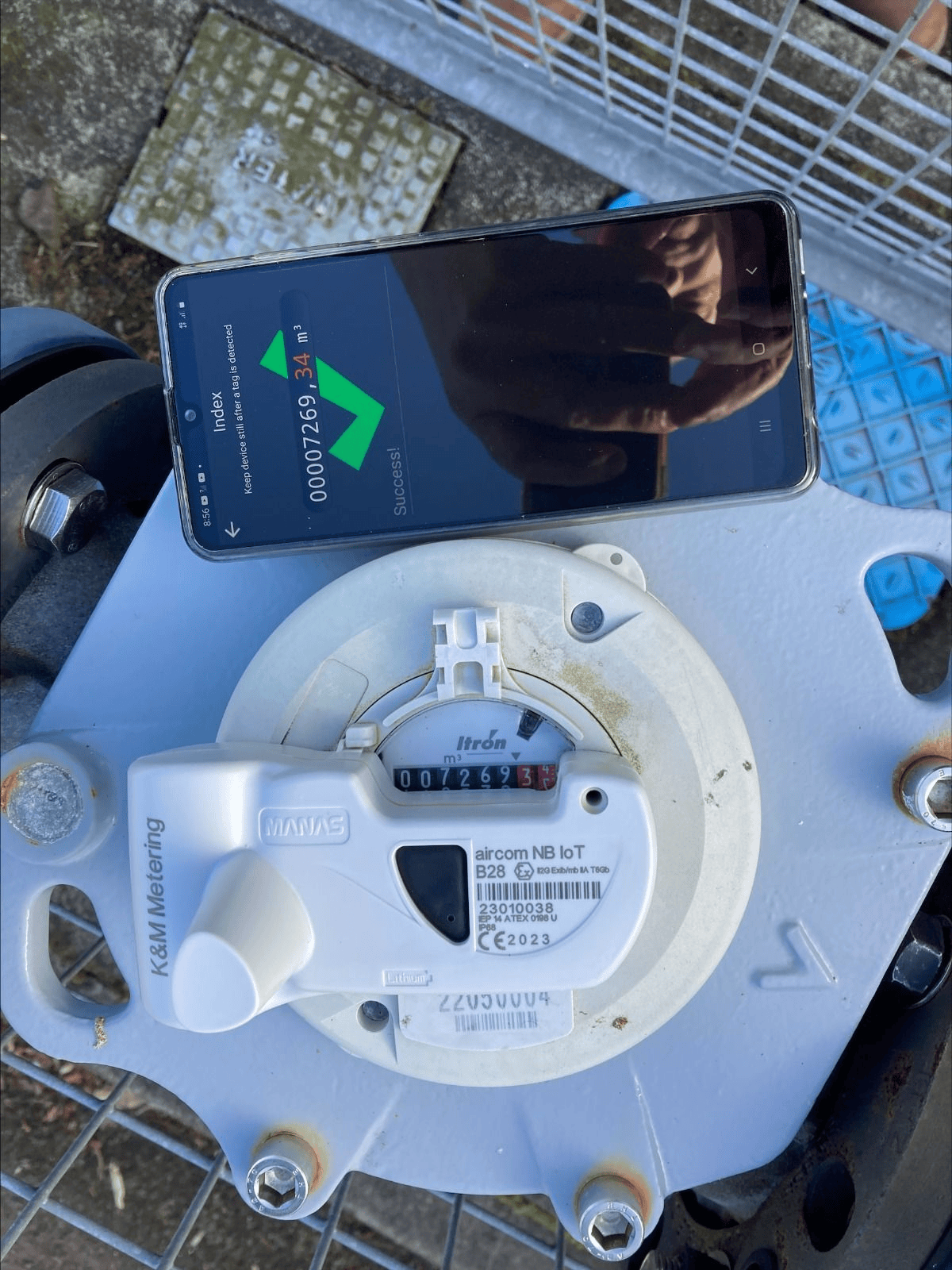

NFC is used for service and installation procedures. Matching up with the meter, performing operational functions, making basic checks, updates in the field and data transmission even if there is no power on module.
Aircom also supports GPRS, LoRa, NB-IoT communication ensuring comprehensive connectivity options.
All data is registered by NB-IoT Aircom at specified time periods of hourly/monthly/annually.
It gives a warning in the case of a reverse consumption on the meter.
Using the mobile app or web app, you can track metering data from anywhere.
